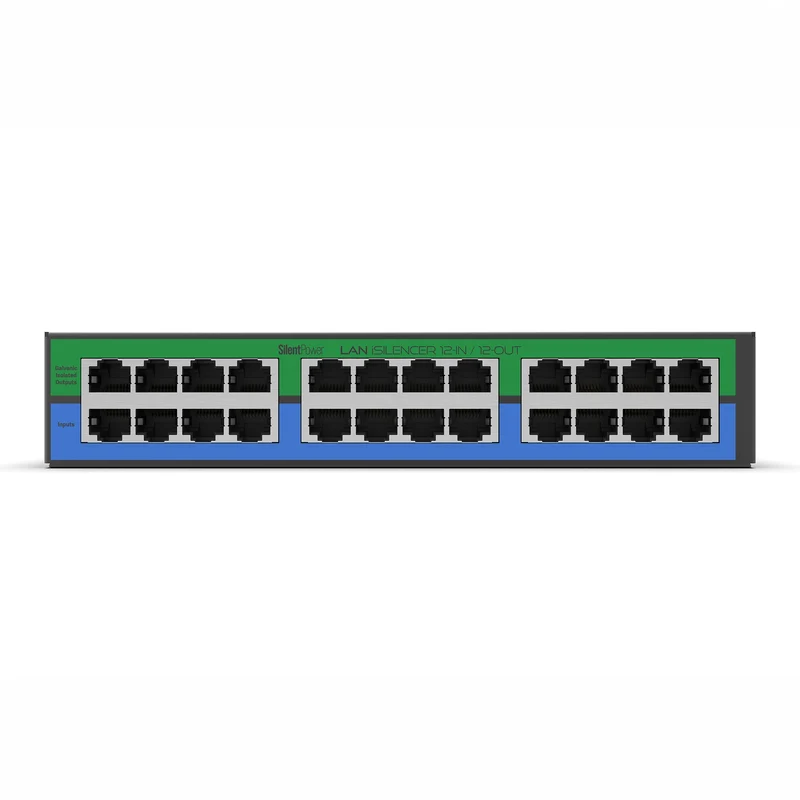

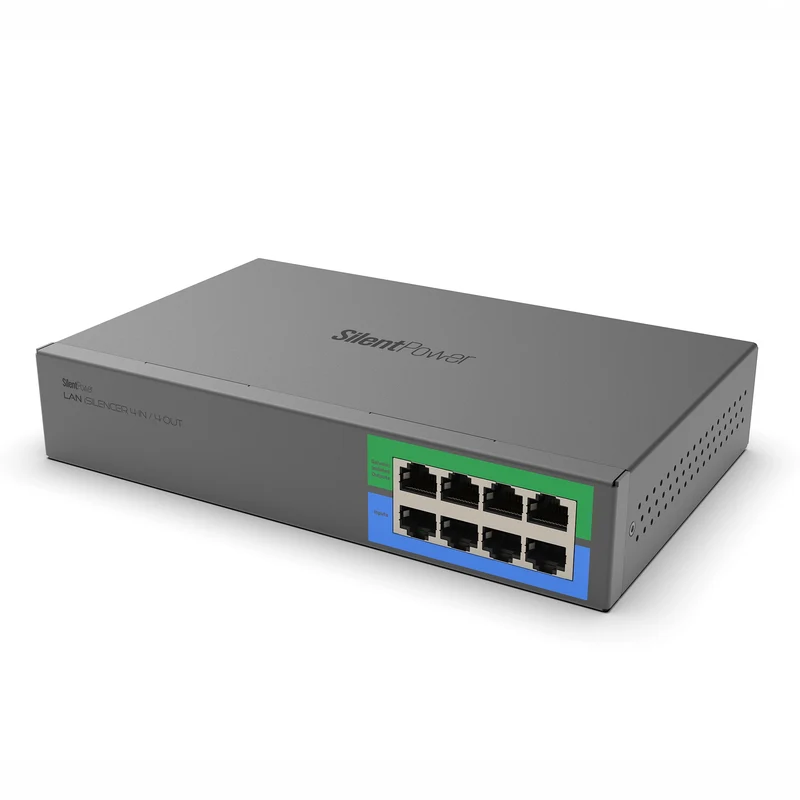

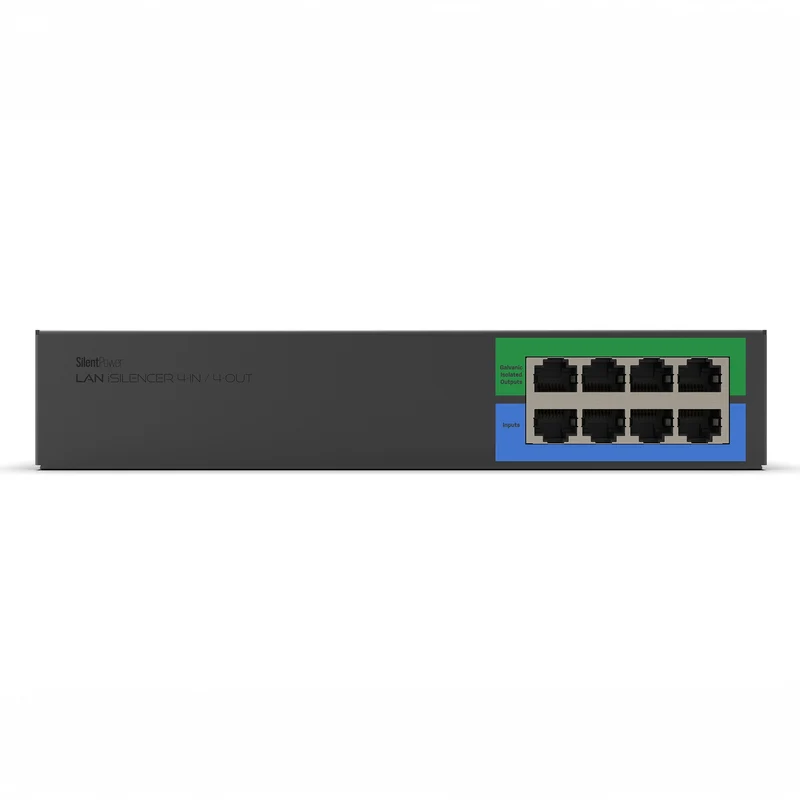

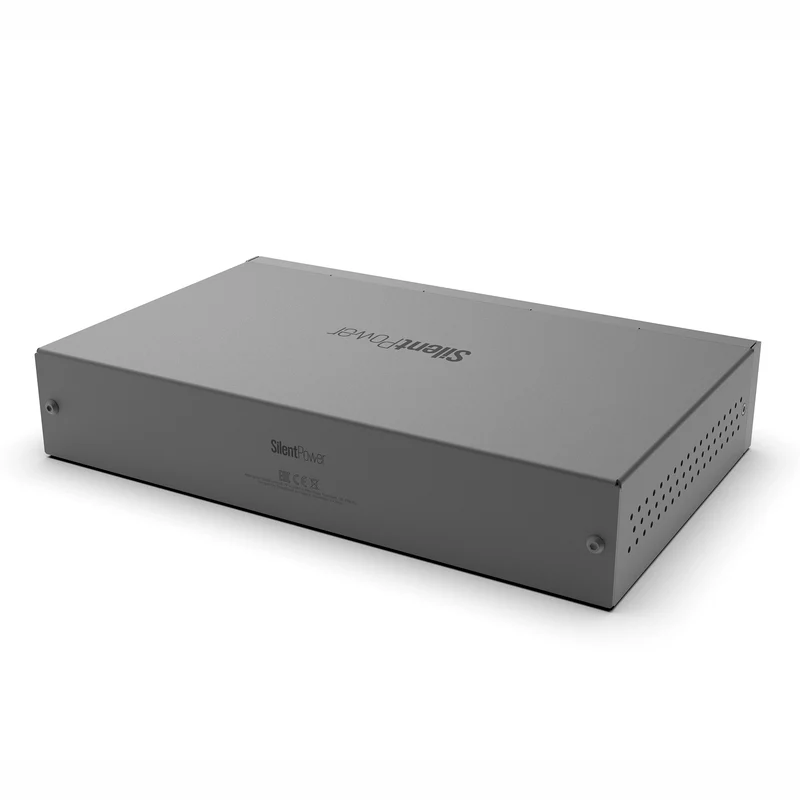

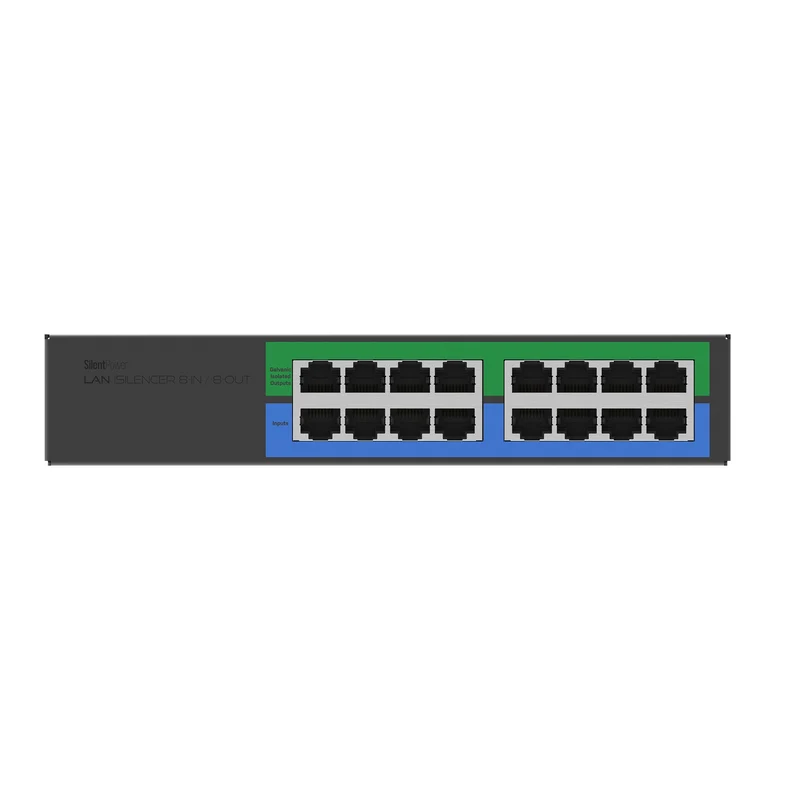

iFi LAN iSilencer 4/8/12 | Isolated Network Conditioner

Silent Power is Proud to Unveil New Multiport Variants of its Acclaimed LAN iSilencer

• Galvanically Isolated Network Conditioner with Surge Protection
• Provides your network with 4 isolated LAN connections
• Each connection delivers 1500Vrms electrical isolation
•  Built-in passive filtering reduces RF interference
• Fully Gigabit Ethernet (GbE) compatible

Network Noise, No More

The LAN iSilencer 4/8/12’s galvanic isolation eliminates ground-loop induced signal noise and common-mode interference, both prevalent issues within larger network-based setups, to ensure clean, stable data transmission.

In addition, passive RF filtering reduces the impact of high-frequency RFI, another bane of more comprehensive and signal-heavy setups.

Perfect Timing

When interference is transmitted through network cabling alongside digital data, this can impact timing at the conversion stage, compromising the precision required for accurate audio and video conversion. This issue is particularly problematic in high-end AV setups, which sadly are often the exact same setups where sources of interference are at their most numerous.

By applying additional passive RF filtering after the galvanic isolation stage, the LAN iSilencer 4/8/12 removes any remaining interference to ensure the cleanest possible signal for un-compromised AV performance.

Voltage Vanguard

Each isolated input/output pair of the LAN iSilencer 4/8/12 incorporates iFi's Transient Voltage Suppression system to safeguard the most valuable components within your AV setup against sudden power spikes and surges, protecting up to a peak of 400W.

Rack Mount Ready

In addition to the deep technical considerations that have been made with the LAN iSilencer 4/8/12, iFi has also made pragmatic real-world considerations to ensure that the LAN iPurifier Pro 4 can fit effortlessly into high-end setups. The compact and efficient design is also fully compatible with their OMNI RACK Mount kit, a 1U rack mount system that guarantees seamless integration in high-end and professional network environments.

Specifications

• Input: RJ45 Female
• Output: RJ45 Female
• Bandwidth: 1000/100/10 Mbps
• Interface Standard: RJ45 Ethernet
• Ethernet Standard: IEEE 802.3x
• Electrical Isolation: 1500Vrms
• Peak Transient Power Detection: 400W
• Weight: 1.39/1.52/1.66 lbs
• Dimensions: 8.4" x 5.2" x 1.6"

In the Box

• iFi LAN iSilencer
• M3*8 Countersunk head screw
• 2 M3*8 Round head screws
• H20 Allen Wrench
• Instruction card
