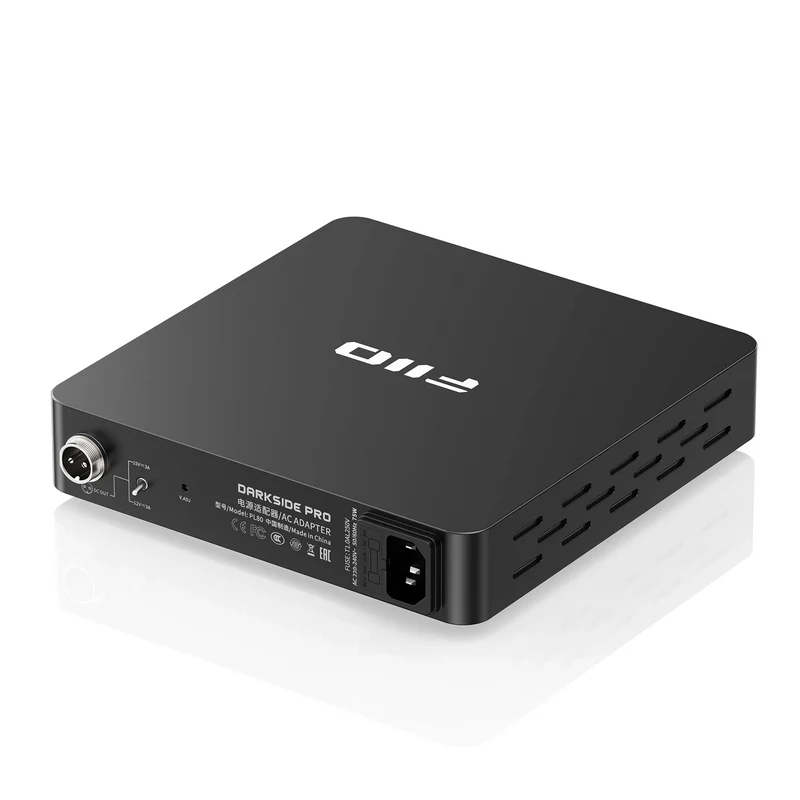

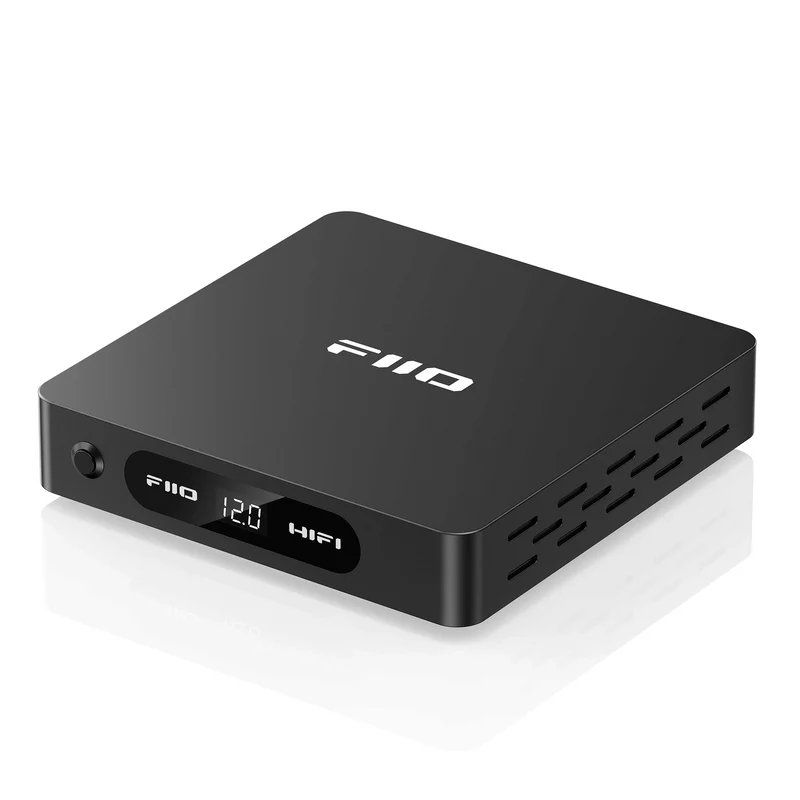

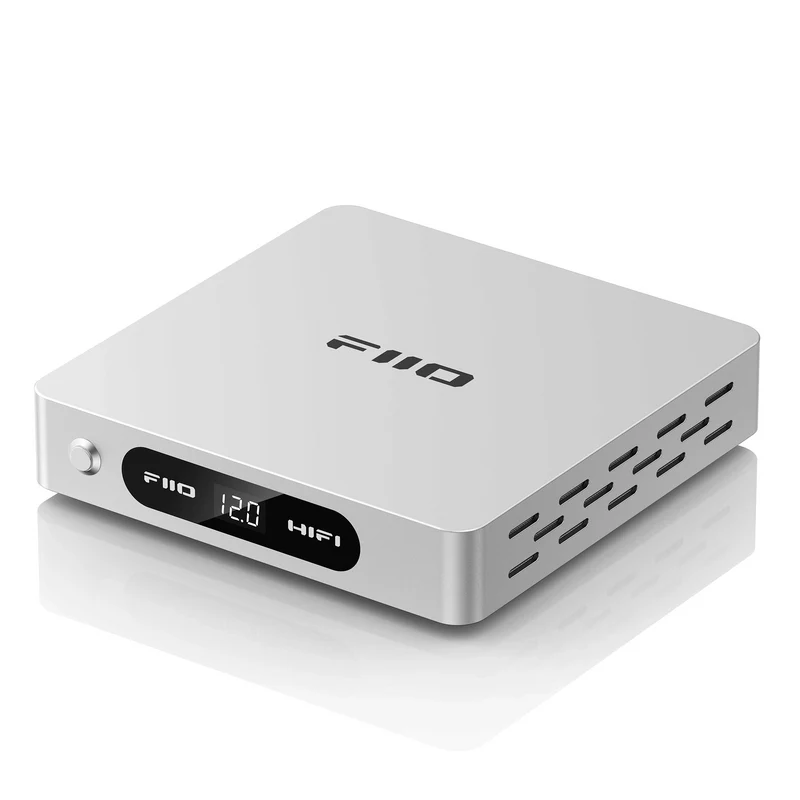

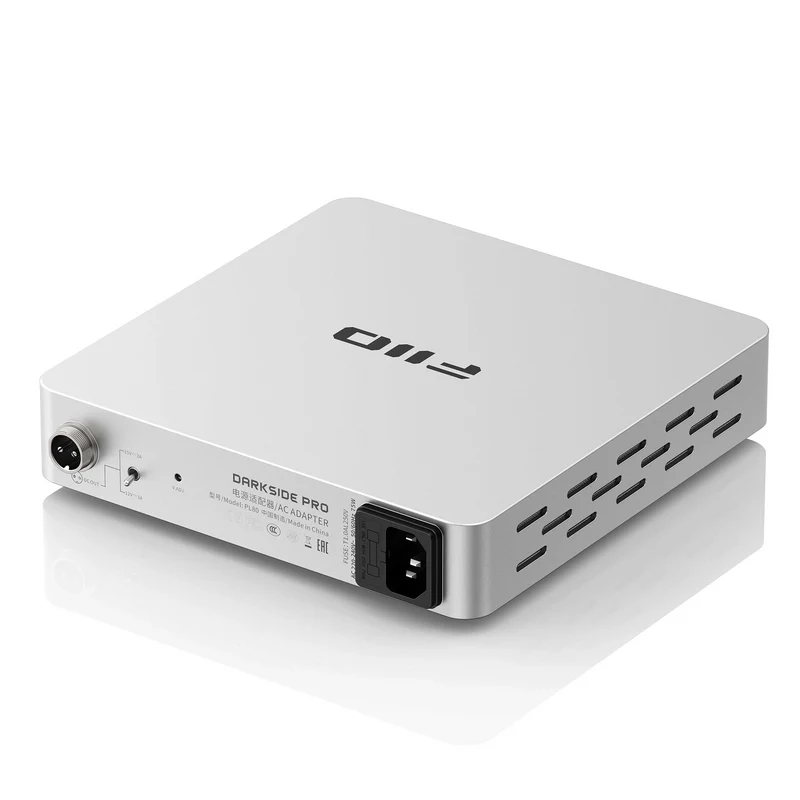

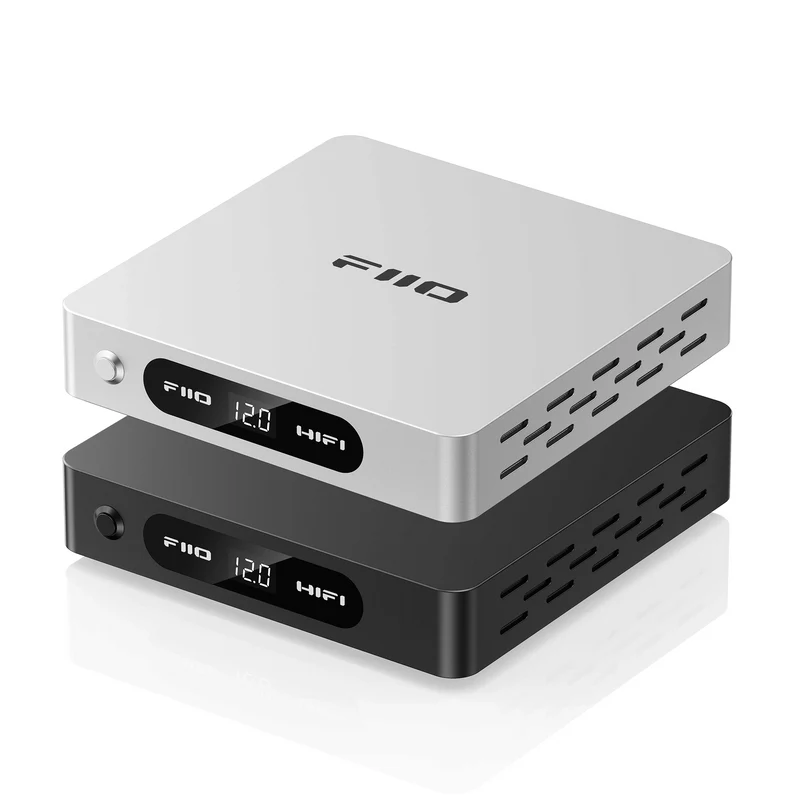

FiiO Darkside Pro | Low-Noise Regulated Linear Power Supply

FiiO is Proud to Introduce Their Power Purification Series with the Darkside Pro, Offering an Ultra-Silent, Pitch-Black Background to Let Your Music Shine

• Audiophile-Grade 75W Toroidal Transformer
• 12V/15V Dual Voltage Support, 3A High Current Output
• Fully Discrete Voltage Regulator Circuit + Dual-MOSFET Parallel Current Amplification Output
• Self-Resetting Fuse Overcurrent Protection
• Precision Potentiometer for Voltage Fine-Tuning

75W Toroidal Transformer

Specifically designed for low-noise audio, this toroidal transformer utilizes a grain-oriented silicon steel circular core process for higher efficiency and minimized eddy currents. The seamless, fold-free coil design ensures a uniform magnetic field and minimal magnetic leakage. With a 75W reserve, it effortlessly handles high-dynamic transient demands, delivering solid bass extension and a vividly clear soundstage.

Audiophile-Grade Components

Japanese Shinengen D15XB60 Bridge Rectifier
Low heat generation and high stability minimizes micro-interference caused by current fluctuations for a cleaner audio signal.

5 ELNA Capacitors + 7 Rubycon Filter Capacitors
Effectively filters power supply noise to reveal a crystal-clear sonic foundation.

Mono-Crystalline Silver-Plated Copper DC Cable
Reduces transmission loss and shields against electromagnetic interference (EMI) to enhance audio details.

Fully Discrete NMOS Voltage Regulator Circuit

Dual high-current IRFZ34NPBF MOSFETs are used in a parallel configuration to lower internal resistance. The result is improved dynamic range and assurance that every nuance of audio is faithfully preserved.

Relay-Switched 12V/15V Output

An integrated relay manages the transformer's output voltage to provide a precise match for both 12V and 15V settings. Such a design maximizes power efficiency and significantly reduces heat generation during operation.

Specifications

• AC Power Input Voltage: 220~240V/100~120V
• DC Power Output Voltage: 12V/15V
• DC Power Output Current: 0~3A
• DC Power Output Interface: GX16-2 Aviation Socket
• Compatible Devices: FiiO K11, K11 R2R, K13 R2R, K15, K19, R9, R7, TT13, K5 Pro series, K7 series, Q7 and all FiiO portable players using Type-C power supply
• Dimensions: 7.40" x 7.40" x 1.67"
• Weight: 4.8lbs

In the Box

• FiiO Darkside Pro
• DC power cord
• AC power cord
• Spare fuse
• Quick start guide
• Warranty card
